Boat Liner Sleeve 6E7-10935-00 fit for Yamaha Parsun Outboard Piston 9.9HP-15HP 56MM
Specification & Compatibility OEM Part Number: 6E7-10935-00 / 6E7-10935-01 / 682-10935-00 Inner Diameter (I.D.): 56 mm Outer Diameter (O.D.): 61 mm Total Height: 101.5 mm Fitment: Seamlessly fits Yamaha 2-stroke 9.9HP & 15HP outboard motors (6E7, 6H3, 9.9FM, 15FM series), and mainstream 15HP clones

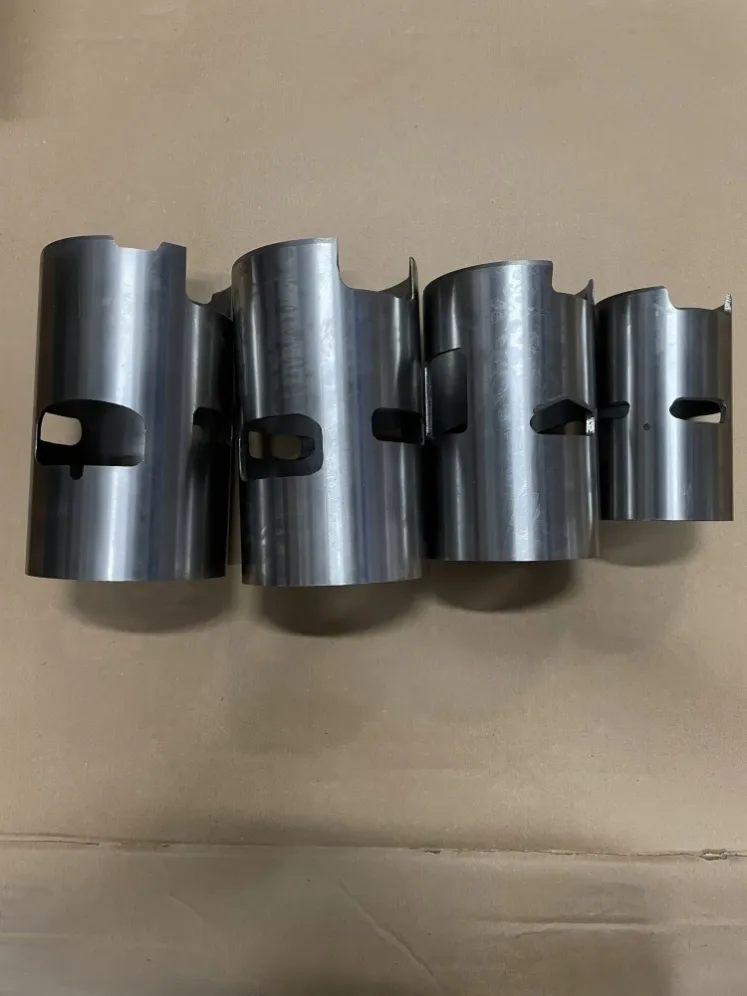

FoPremium Cylinder Liner Sleeve 6E7-10935-00 | For Yamaha 2-Stroke 9.9HP & 15HP Outboard Motors
Maximize engine compression and extend service life with our premium-grade marine cylinder liner sleeves. Engineered strictly to OEM dimensions, this heavy-duty sleeve is the definitive choice for global wholesalers, marine repair shops, and commercial fleet maintenance.
1. Technical Specifications
- OEM Part Number: 6E7-10935-00 / 6E7-10935-01 / 6E7-10935-02
- Inner Diameter (I.D.): 56.00 mm (Standard Bore)
- Outer Diameter (O.D.): 61.00 mm
- Total Height: 101.50 mm
- Engine Compatibility: Fits Yamaha 2-Stroke 9.9HP & 15HP outboards (6E7 / 6H3 / 9.9FM / 15FM series). Also 100% compatible with major 15HP Chinese clone brands including Parsun, Hidea, Seapro, Eanice, etc.
2. Engineered for the Harshest Marine Environments
Unlike standard automotive liners, our marine cylinder sleeves are manufactured using an advanced high-boron/chromium alloy cast iron matrix. This premium metallurgy delivers distinct operational advantages:
- Superior Thermal Conductivity: Rapidly dissipates heat under continuous high-RPM loads, effectively preventing localized overheating and thermal distortion.
- Advanced Cross-Hatch Honing: The inner wall features a precision-machined cross-hatch pattern that optimizes oil film retention. This ensures flawless piston ring lubrication, significantly lower friction coefficients, and zero break-in scuffing.
- Anti-Seizure & High Wear Resistance: Specifically formulated to combat the rigorous "dry-start" and high-frequency combustion characteristic of 2-stroke outboard engines.
- Corrosion Barriers: Enhanced structural density prevents microscopic salt-water pitting and oxidation, ensuring structural integrity in both brackish and saltwater applications.
3. Why Source From Us?
As a specialized supplier of outboard engine parts, we prioritize high-quality product positioning over price-based competition:
- Micron-Level Tolerance Control: Every batch undergoes rigorous QA inspections using digital coordinate measuring machines (CMM) to ensure flawless press-fit installation into the engine block.
- Factory-Direct Supply & Reliable Stocking: We maintain stable inventories to ensure fast lead times for bulk orders, minimizing your supply chain delays.
Professional Export Packaging: Each liner is coated in rust-preventative oil, vacuum-sealed, and securely boxed to withstand long-distance maritime and air freight shipping.r Yamaha Outboard part number: 6E7-10935-00 / 6E7-11312-00 (check OEM part number before purchase!!! - Important)
Cylinder Liner Sleeve
For Yamaha Outboard part number: 6E7-10935-00 / 6E7-11312-00 (check OEM part number before purchase!!! - Important)
Cylinder Liner Sleeve
Condition: Brand New
Boat M
Condition: Brand New
Boat Motor for Outboard Engine
